Sword Line

3000 psi Welded Cylinder - Double Acting - Heavy Duty

Find A Distributor

Standard Features:

  • 3000 PSI - All purpose line
  • Bore sizes 1.5" to 4"
  • Skived/honed tubing
  • Heavy duty welded construction
  • Chromed, ground & polished piston rod
  • Ductile iron piston & gland
  • Ductile clevis & cast steel base end
  • Urethane u-cup & urethane wiper in gland, crown seal on piston
  • Square ring gland retainer provides positive lock
  • Pins, clips & cotters included
  • Stroke control may be installed on 8" strokes
image description

Sword Line - Product Table

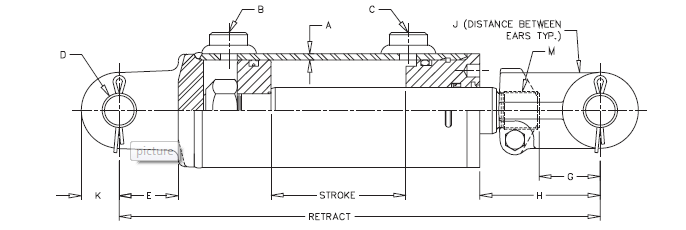

Model Number Bore x Stroke Wt Column Load Ret. Rod Dia. Value A Value B/C Value D Value E Value G Value H Value J Value K Value M
SAE-19408 1 1/2 x 8 13 Full PSI 20 1/4 3/4 3/16 #6 SAE 0.765 2 5/8 2 5/8 5 1/4 5/8 3/4 -
SAE-19410 1 1/2 x 10 14 4,600 LBS 20 1/4 3/4 3/16 #6 SAE 0.765 2 5/8 2 5/8 3 1/4 5/8 3/4 -
SAE-19412 1 1/2 x 12 16 3,525 LBS 22 1/4 3/4 3/16 #6 SAE 0.765 2 5/8 2 5/8 3 1/4 5/8 3/4 -
SAE-19416 1 1/2 x 16 20 1,525 LBS 31 1/2 3/4 3/16 #6 SAE 0.765 2 5/8 2 5/8 8 1/2 5/8 3/4 -
SAE-42008 2 x 8 19 Full PSI 20 1/4 1 1/8 3/16 #8 SAE 1.015 1 3/4 1 13/16 5 9/16 1 1/16 1 1 1/8-12
SAE-42010 2 x 10 20 Full PSI 20 1/4 1 1/8 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 9/16 1 1/16 1 1 1/8-12
SAE-42012 2 x 12 22 Full PSI 22 1/4 1 1/8 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 9/16 1 1/16 1 1 1/8-12
SAE-42016 2 x 16 25 Full PSI 31 1/2 1 1/8 3/16 #8 SAE 1.015 1 3/4 1 13/16 8 13/16 1 1/16 1 1 1/8-12
SAE-42020 2 x 20 28 7,575 LBS 30 1/4 1 1/8 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 9/16 1 1/16 1 1 1/8-12
SAE-42024 2 x 24 31 5,600 LBS 34 1/4 1 1/8 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 9/16 1 1/16 1 1 1/8-12
SAE-42508 2 1/2 x 8 21 Full PSI 20 1/4 1 1/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 5 9/16 1 1/16 1 1 1/8-12
SAE-42510 2 1/2 x 10 22 Full PSI 20 1/4 1 1/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 9/16 1 1/16 1 1 1/8-12
SAE-42512 2 1/2 x 12 23 Full PSI 22 1/4 1 1/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 9/16 1 1/16 1 1 1/8-12
SAE-42516 2 1/2 x 16 27 10,800 LBS 31 1/2 1 1/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 8 13/16 1 1/16 1 1 1/8-12
SAE-42520 2 1/2 x 20 31 11,700 LBS 30 1/4 1 1/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 9/16 1 1/16 1 1 1/8-12
SAE-42524 2 1/2 x 24 35 8,600 LBS 34 1/4 1 1/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 9/16 1 1/16 1 1 1/8-12
SAE-43008 3 x 8 23 Full PSI 20 1/4 1 3/8 3/16 #8 SAE 1.015 1 3/4 1 13/16 5 9/16 1 1/16 1 1/8 1 1/8-12
SAE-43010 3 x 10 26 Full PSI 20 1/4 1 3/8 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 9/16 1 1/16 1 1/8 1 1/8-12
SAE-43012 3 x 12 28 Full PSI 22 1/4 1 3/8 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 9/16 1 1/16 1 1/8 1 1/8-12
SAE-43016 3 x 16 33 16,900 LBS 31 1/2 1 3/8 3/16 #8 SAE 1.015 1 3/4 1 13/16 8 13/16 1 1/16 1 1/8 1 1/8-12
SAE-43020 3 x 20 39 17,300 LBS 30 1/4 1 3/8 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 9/16 1 1/16 1 1/8 1 1/8-12
SAE-43024 3 x 24 43 12,800 LBS 34 1/4 1 3/8 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 9/16 1 1/16 1 1/8 1 1/8-12
SAE-43508 3 1/2 x 8 29 Full PSI 20 1/4 1 1/2 3/16 #8 SAE 1.015 1 3/4 1 13/16 5 3/8 1 1/8 1 1/4 1 1/2-12
SAE-43510 3 1/2 x 10 31 Full PSI 20 1/4 1 1/2 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 3/8 1 1/8 1 1/4 1 1/2-12
SAE-43512 3 1/2 x 12 33 Full PSI 22 1/4 1 1/2 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 3/8 1 1/8 1 1/4 1 1/2-12
SAE-43516 3 1/2 x 16 38 24,200 LBS 31 1/2 1 1/2 3/16 #8 SAE 1.015 1 3/4 1 13/16 8 3/8 1 1/8 1 1/4 1 1/2-12
SAE-43520 3 1/2 x 20 43 24,700 LBS 30 1/4 1 1/2 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 3/8 1 1/8 1 1/4 1 1/2-12
SAE-43524 3 1/2 x 24 48 18,250 LBS 34 1/4 1 1/2 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 3/8 1 1/8 1 1/4 1 1/2-12
SAE-44008 4 x 8 40 Full PSI 20 1/4 1 3/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 5 3/8 1 1/8 1 1/4 1 1/2-12
SAE-44010 4 x 10 43 Full PSI 20 1/4 1 3/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 3/8 1 1/8 1 1/4 1 1/2-12
SAE-44012 4 x 12 45 Full PSI 22 1/4 1 3/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 3/8 1 1/8 1 1/4 1 1/2-12
SAE-44016 4 x 16 54 Full PSI 31 1/2 1 3/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 8 3/8 1 1/8 1 1/4 1 1/2-12
SAE-44020 4 x 20 58 Full PSI 30 1/4 1 3/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 3/8 1 1/8 1 1/4 1 1/2-12
SAE-44024 4 x 24 60 33,525 LBS 34 1/4 1 3/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 3/8 1 1/8 1 1/4 1 1/2-12
SAE-44030 4 x 30 65 22,900 LBS 40 1/4 1 3/4 3/16 #8 SAE 1.015 1 3/4 1 13/16 3 3/8 1 1/8 1 1/4 1 1/2-12
