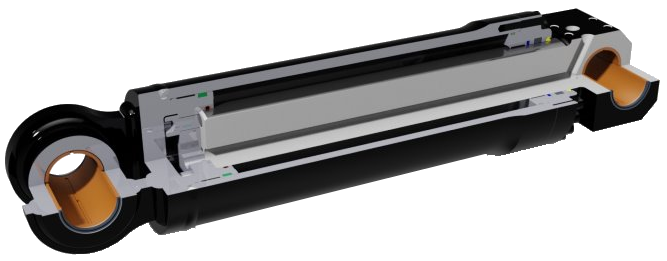

CUSTOM CYLINDERS

Custom cylinder designs provide our customers with a competitive advantage as a result of a collaborative design approach which delivers an optimized solution to meet their needs. Custom cylinder designs translate into a durable product, compact in size and weight and packed with integrated features like rephasing, cushioning, valve cavities, position sensors and more. Prince has over 65 years producing custom cylinder designs utilizing the latest CAD software, manufacturing equipment and quality processes to deliver unparalleled value to our customers.

Manufacturing Capabilities
  • Welded Designs with 1” to 20” Bores
  • Tie Rod Designs with 2” to 5” Bores
  • Telescopic Designs, Single & Double Acting
  • Large Bore Air Cylinders
  • Cylinder-style Accumulators
  • Stroke Lengths up to 50 Feet
  • Designed for Pressures up to 7,500 PSI
Custom Cylinder Features
  • Integrated Linear Position Sensors
  • Built-in Valves and Manifolds
  • Double Ended cylinder designs
  • Piggyback cylinder designs
  • Integrated Cushioning and Rephasing
  • Safety Designs with Velocity Fuses
  • Spherical and High-Wear Bushings
  • Custom Mounts and End Fittings
  • High-Strength / Weight-saving Materials
  • Color-matched Paint and Labeling
Quality
  • Products 100% Tested
  • ISO 9001:2008 Certified
  • Real-time Quality Process Monitoring
  • In-house Gravimetric Cleanliness Testing
  • Gauge calibration Traceable to NIST standards
  • Oil filtration to ISO 4406:1999 19/17/14 Standard
Engineering and R&D Support
  • Factory Direct Sales Support
  • Burst Testing (Up to 15,000 PSI)
  • Fatigue and Impulse Testing
  • 3D Modeling Design (AutoDesk Inventor)
  • Dedicated CASS & B117 Corrosion Testing
  • Finite Element Analysis (DFMEA & PFMEA)
YouTube videos
TechnologyResearch and Development Lab Test Facility: Learn more about our Research and Development Lab Test Facility where we show the lengths at which we can test, evaluate and capture performance data on our products.[Watch Video]
TechnologyConfigure2Quote Custom Cylinder & Valve Configurator: Learn more about this powerful tool which enables you to configure your own custom cylinder in real-time and produce a 2D drawing, model number and quote.[Watch Video]
